BA (Bright Annealing) Bright burning dullness:

In hydrogenation or vacuum high-temperature heat treatment, on the one hand, internal stress is eliminated, and on the other hand, a passivation film is formed on the surface of the pipeline to improve the morphology and reduce energy levels, but it does not increase surface roughness.

Scope of use:

(1) EP grade pipeline - high-purity gas (5N&6N or above), toxic (PH3 AsH3 SiH2Cl2), corrosive (HCINH3), flammable and explosive (SiH4) gas.

(2) BA General gas N2O2 H2 Ar CDA

(3) AP compressed gas, double casing outer tube

Stainless steel clean pipes are used to transport high-purity or ultra pure gases in the semiconductor industry, as well as clean pipes (various types of water) in the biopharmaceutical industry. Among them, the surface treatment method of stainless steel pipeline system is AP (Annealed&Pickled): that is, acid pickling and passivation. The inner surface of the pipeline will not improve surface roughness after acid pickling and passivation, but can remove residual particles and grease on the surface, reduce energy levels, but will not reduce the quantity of media.

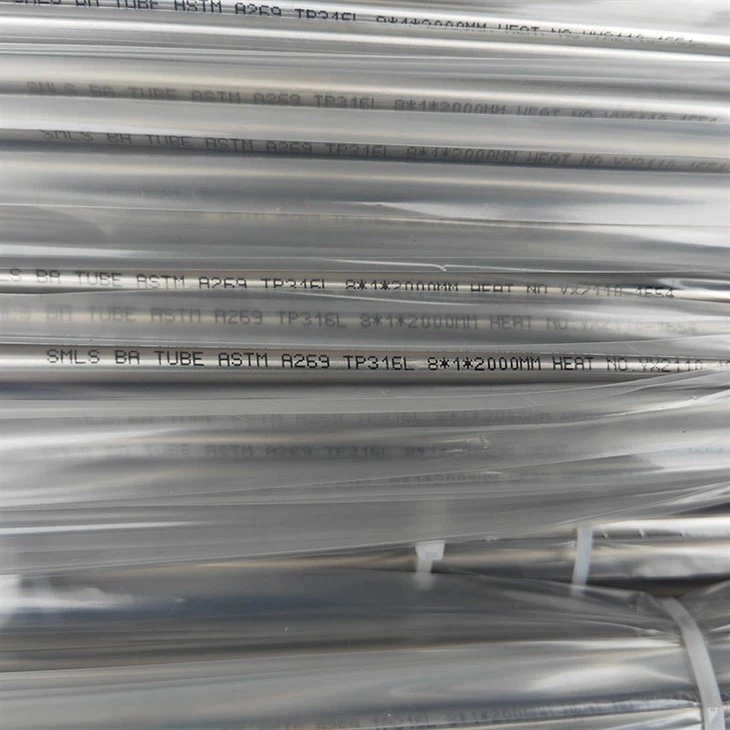

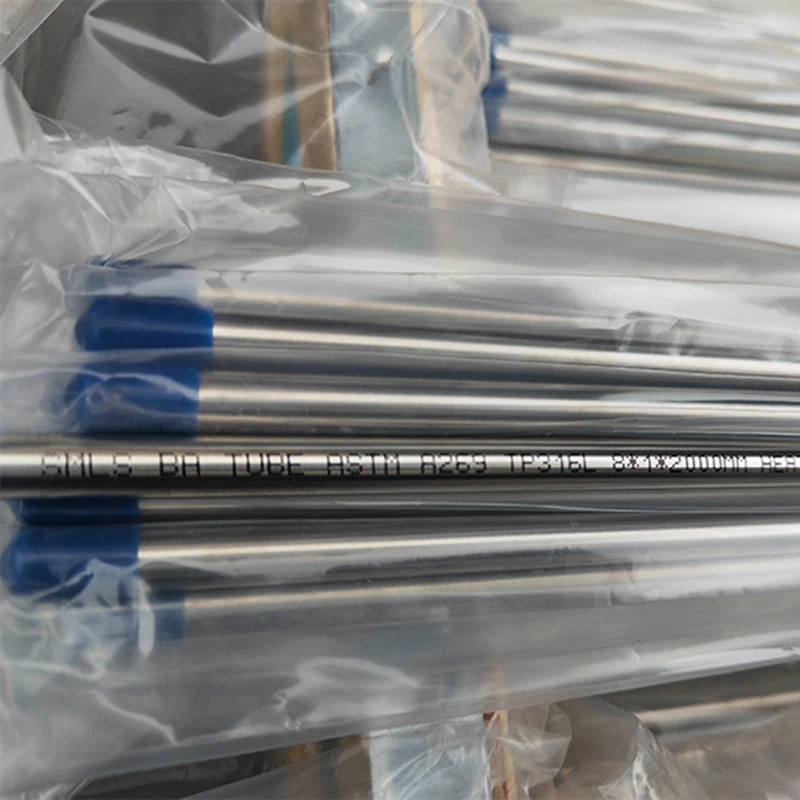

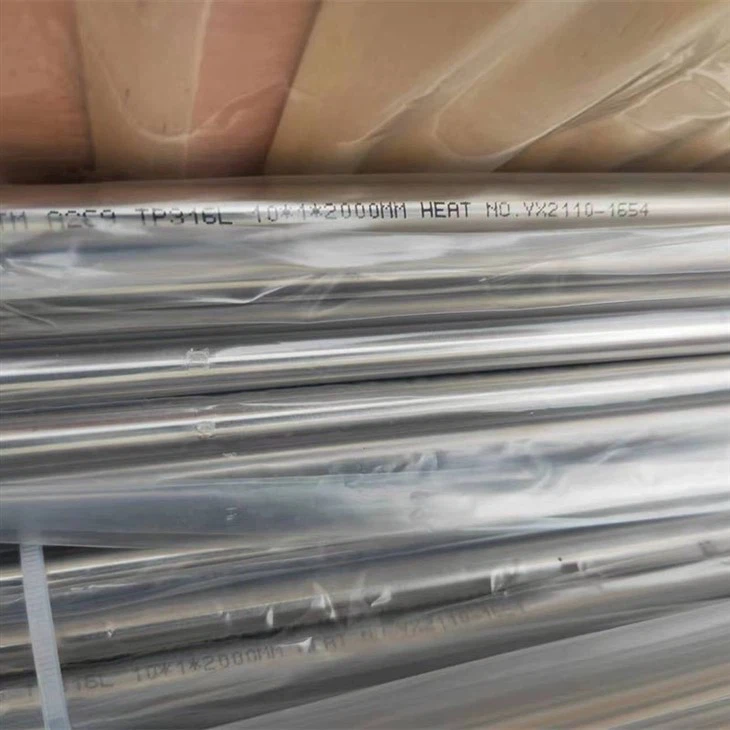

BA (Bright Annealed): refers to bright annealing, which is a high-temperature treatment in a hydrogenation or vacuum state. On the one hand, it eliminates internal stress, and on the other hand, it forms a passivation film on the surface of the pipeline to improve the morphology and structure and reduce energy levels. To some extent, it has improved the surface roughness. (Special gas discharge pipe and general nitrogen)

EP (electro-polished): refers to point polishing, which can greatly improve the surface morphology and structure through electrochemical polishing, and minimize the actual surface area. The surface is a closed and thick chromium oxide film, with energy close to the normal level of the alloy, and the number of working media will also be minimized. Industries such as microelectronics, optoelectronics, and biopharmaceuticals typically use BA/EP products for high-purity and clean pipeline systems that transport sensitive or corrosive media.

Quality inspection of pipes:

1. Visual inspection inside and outside the pipe

Inspection rate: 100%

Inspection items: There should be no water marks, dirt, uneven grinding, poor electrolysis, or discoloration inside the pipe

2. Surface roughness measurement detection

Inspection rate: 10%

Inspection item: Ra/Rmax

3. White cloth experiment

Pipeline inspection rate: 100%

Inspection item: The white cloth inside the tube must not be dirty or have residual grease

4. Pure water impedance measurement

Inspection rate: 10%

Inspection item: Pure water resistance at the end of the tube>17.5M Ω. cm

5. Particle residue determination

Inspection rate: 1%

Inspection item: Particle

6. Determination of residual oil in the pipe

Inject pure water, seal, shake and shake, let it stand and distill to extract residual oil, and calculate the residual amount

Inspection rate: 1%

Standard value:<0>

The commonly used grades are:

Austenitic Stainless Steel:304,304H,304L,316L,316H,316Ti,317,317L,321,347,347H,347HFG,310S,310H,

Super Austenitic Stainless Steel: S30432,S31042,N0367,904L,Nitronic 40,Nitronic 60,XM-19

Duplex Stainless Steel: 254SMO,F50,2205,F53,F55,F60,F61,F65,S31500,S31803,S32205,S32750,S32760

PH Steel: 15-5PH,17-4PH,17-7PH,13-8MO
